Application

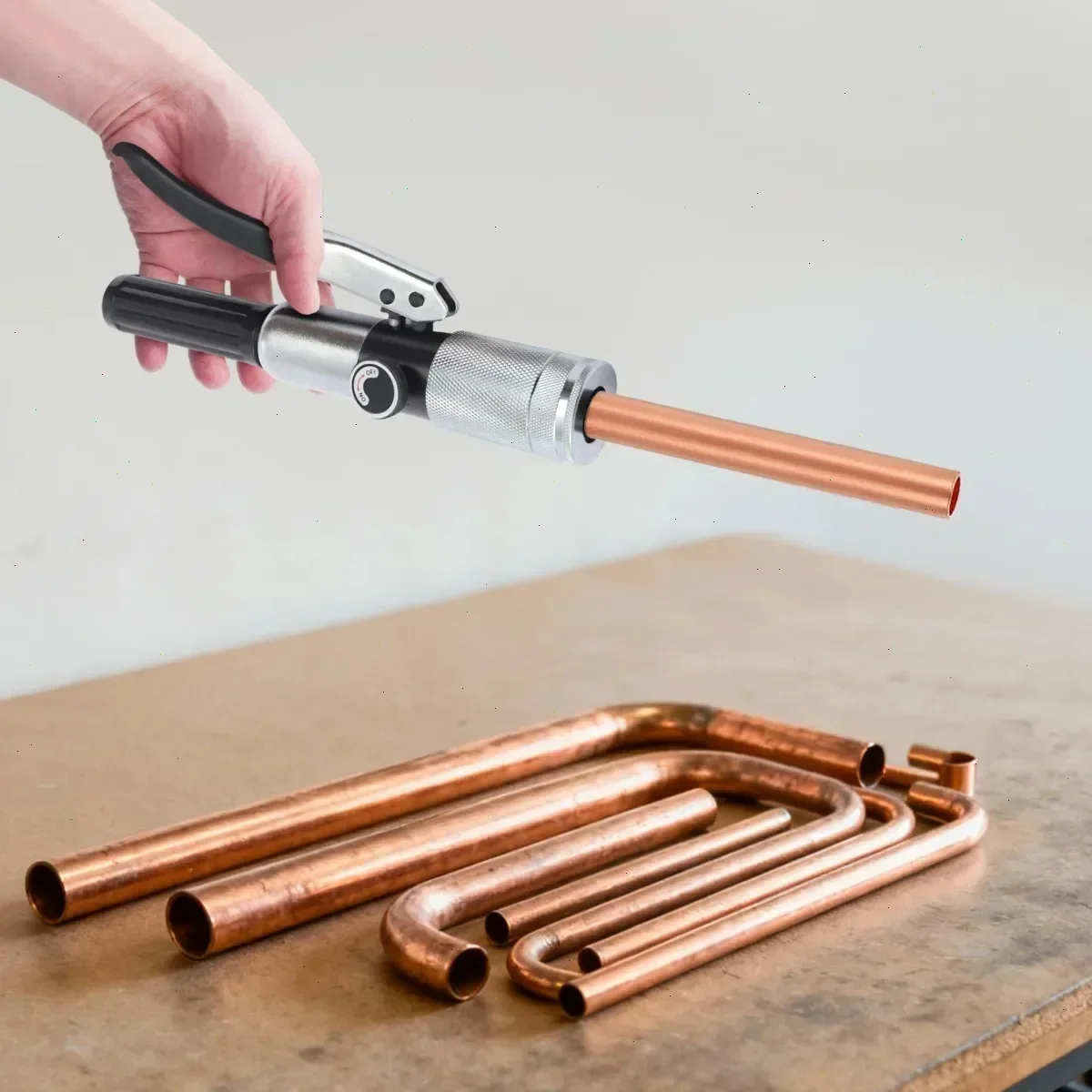

It is mainly used in underfloor heating, air conditioning, sanitary ware and other areas to expand copper or aluminum tubes.

How to Use
1. Remove burrs from the inside of the tube.
2. Anneal the tube if necessary (for hard or thick wall tubes).
3. Screw the expander head onto the expander.
4. Insert the end of the tube fully into the expander.
5. Tighten the relief valve knob to the ‘ON’ position, then pump handle until the tube is expanded to the end.
6. Turn the pressure-reducing valve to the OFF position to release the expander head and remove the expanded tube.

Specification
Model: CT-300
Material: 45# Steel and Aluminum Alloy
Color: Silver, Black
Power Source: Manual Hydraulic-powered
Carrying Case Color: Blue
Expander Heads Size: 3/8'', 1/2'', 5/8'', 3/4'', 7/8'', 1'', 1-1/8''

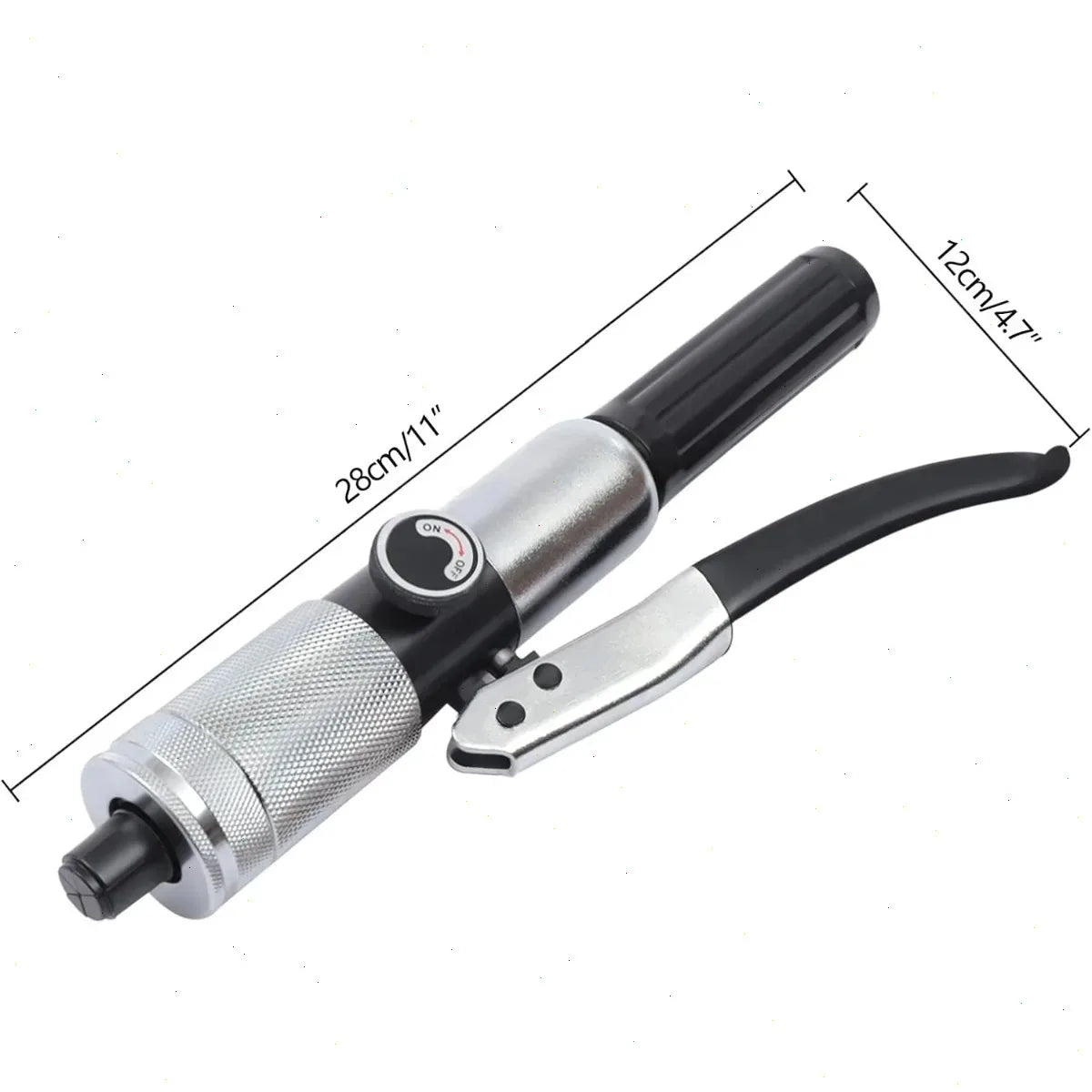

Hydraulic Tube Expander Size: 28*12cm/11*4.7in
Cut Tube Size Range: 6-50 mm/0.25-2in

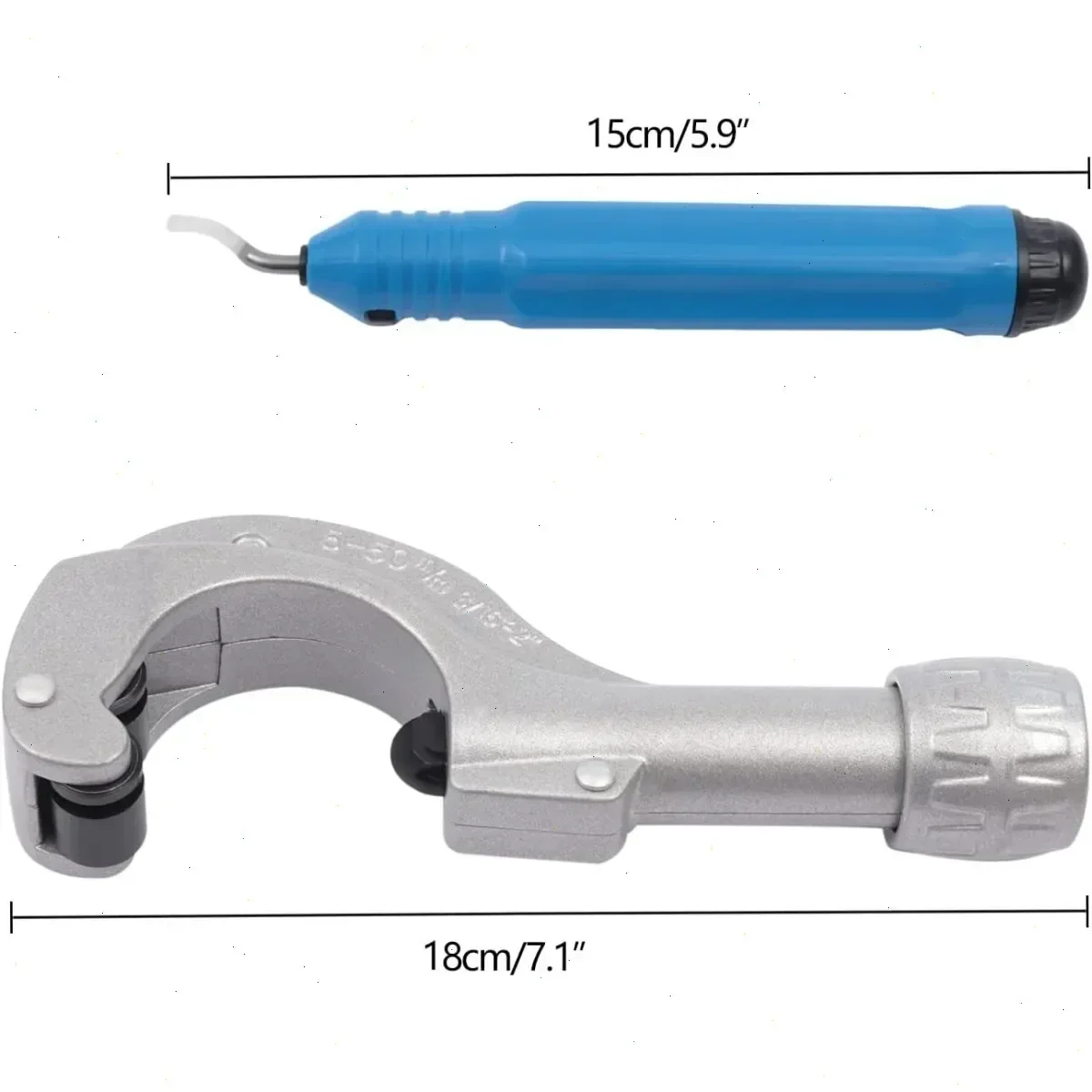

Tube Cutter Length: 18cm/7.1in
Deburring Tool Length: 15cm/5.9in
Packing Size: 45*25*7cm/17.71*9.84*2.75in
Gross Weight: 3kg/6.61lbs

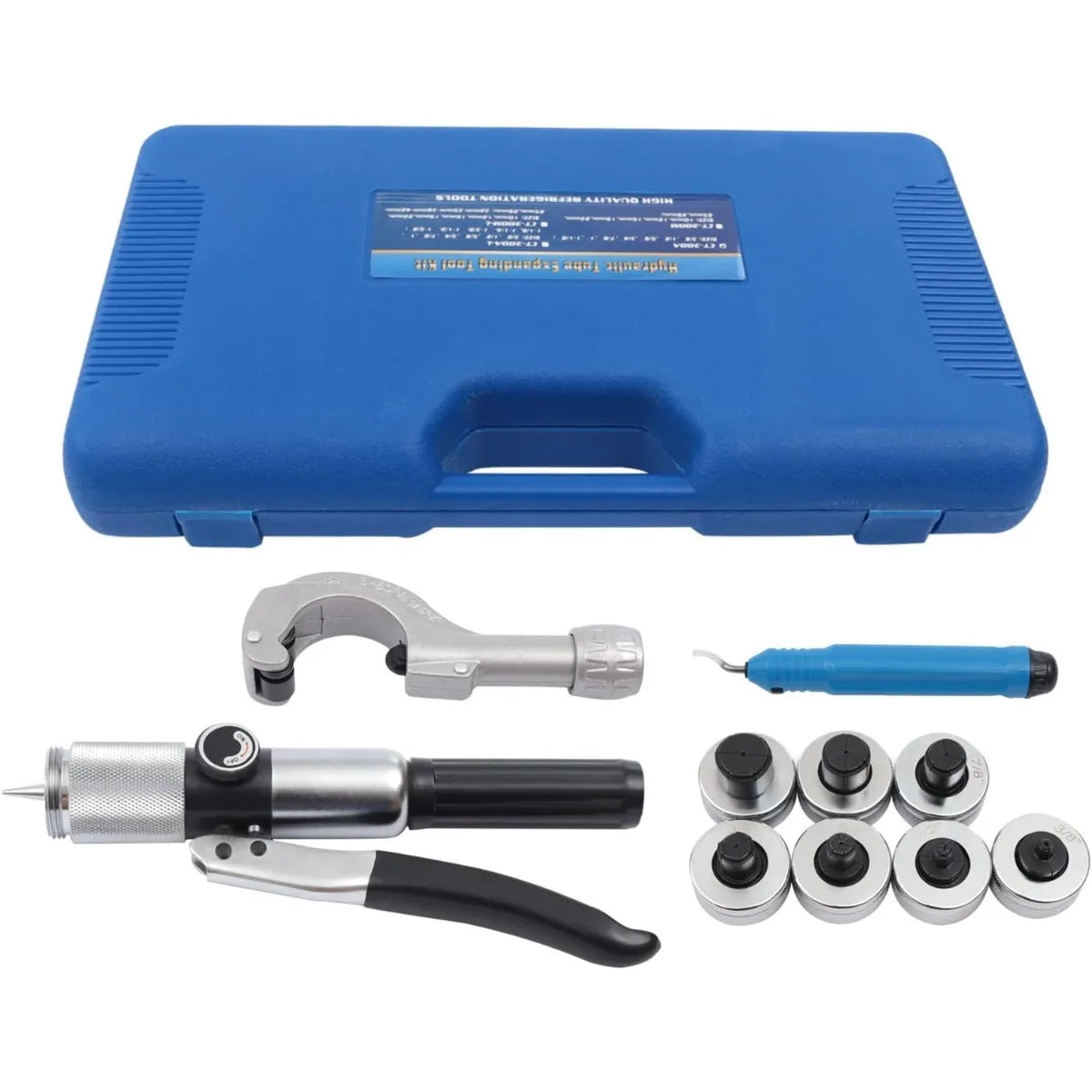

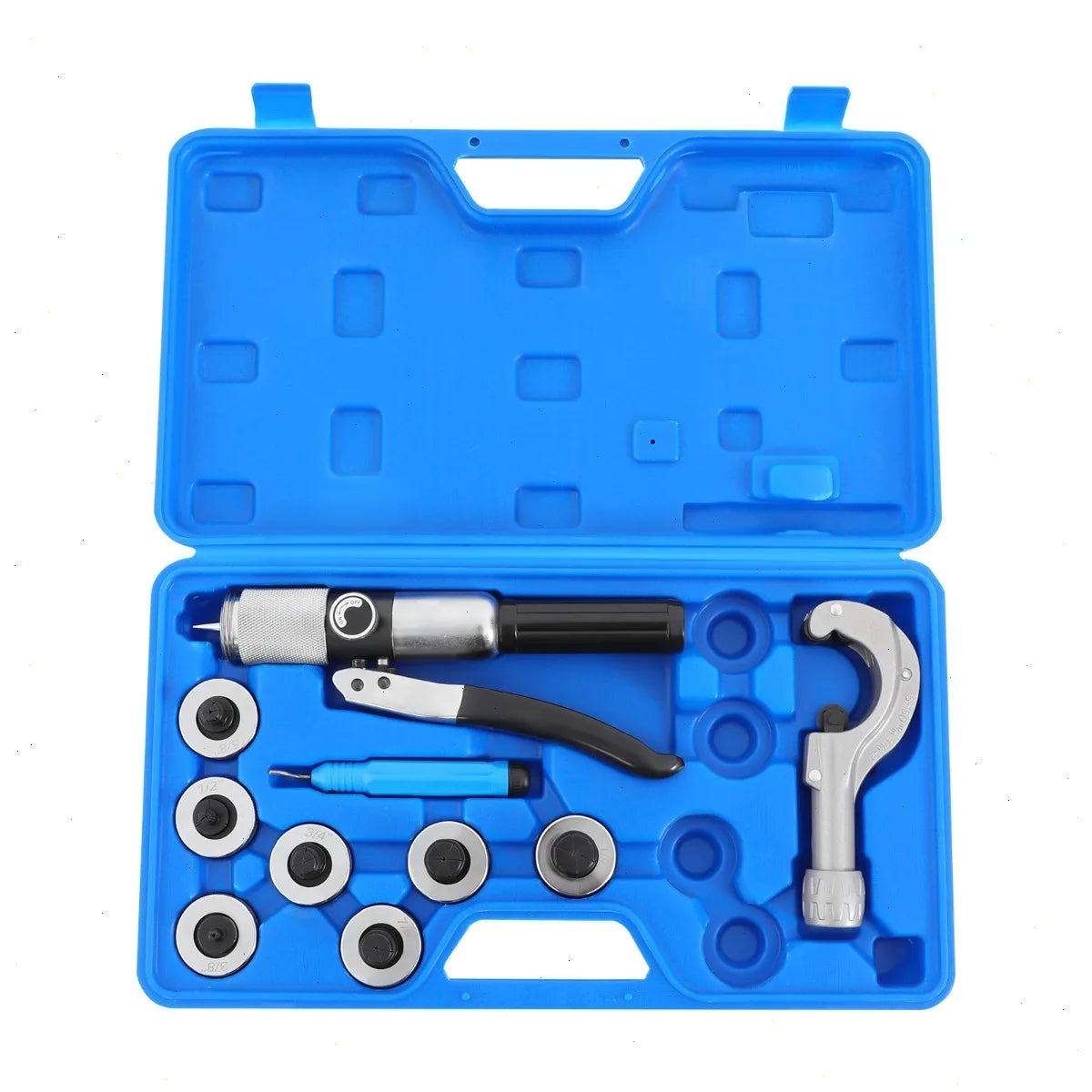

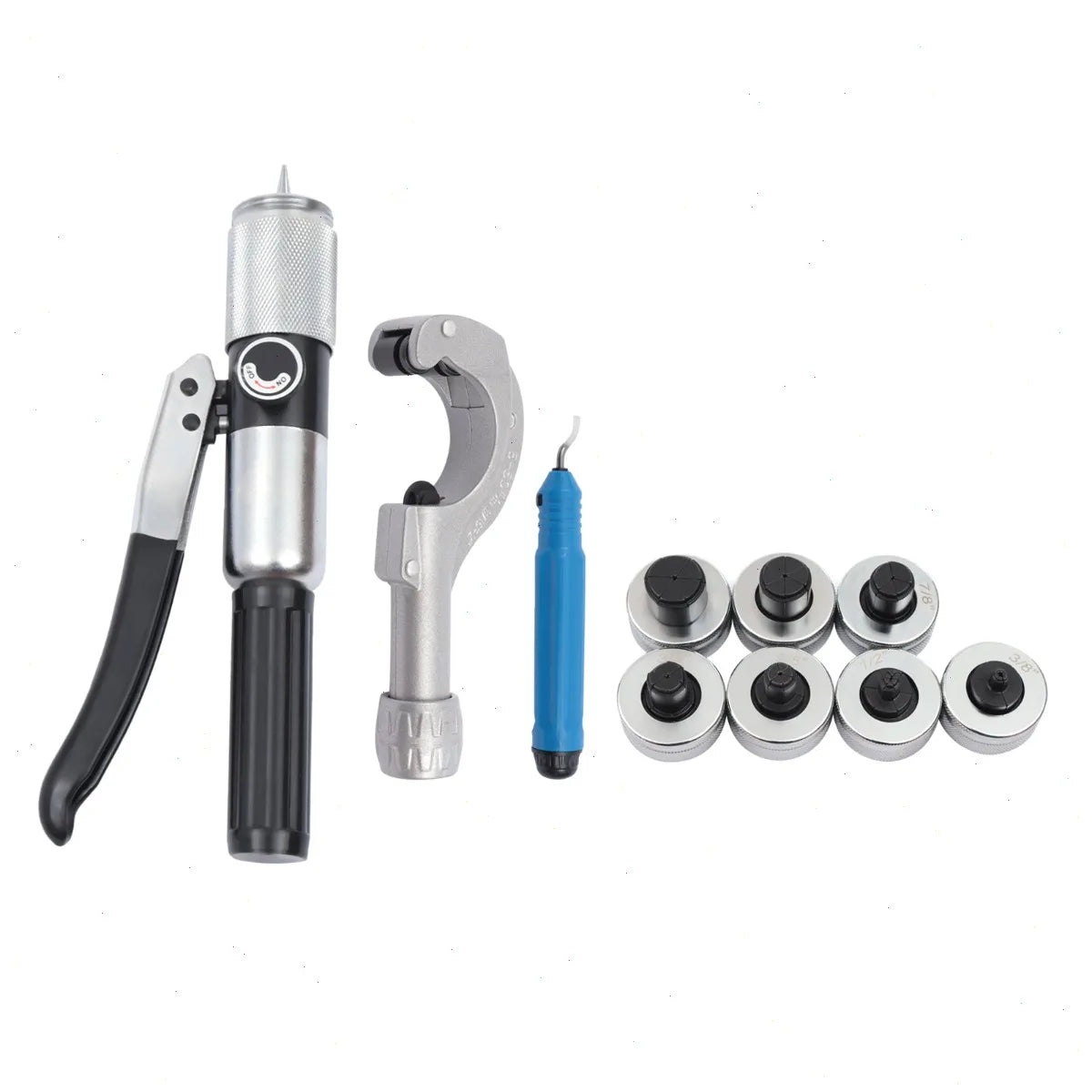

Package Included
1 * Hydraulic Tube Expander
1 * Tube Cutter
1 * Deburring Tool
7 * Expander Heads
1 * Blue Carrying Case
1* English User Manual

Notes
1.For hard tubes, please anneal the tube before expanding to prevent cracking or hard expanding.
2.Please allow the slight color difference caused by the shooting light and 1-3 cm error due to manual measurement, and make sure you do not mind before ordering.
